Snap-Action Switch with 15.6mm Bump Lever: 3-Pin, SPDT, 5A
1405
$0.85
| SKU | We can ship Today | We can ship in 7 days |
|---|---|---|
| 1405 | 0 units | 270 units |

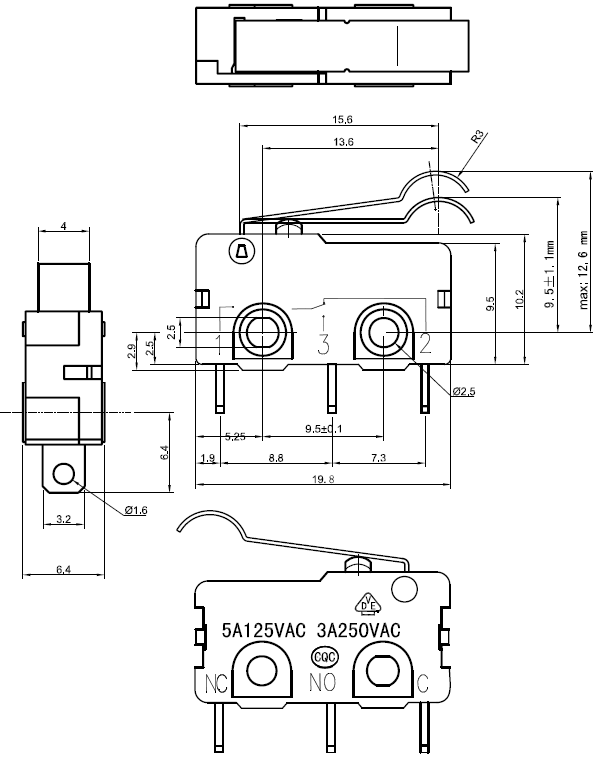

This single-pole, double-throw (SPDT) switch can be used as a general-purpose micro switch or tactile bump sensor for your robot. The switch body dimension is 20.0 x 6.4 x 10.2 mm, and the 15.6mm lever arm has a semicircular bump at the tip that simulates a roller.
This single-pole, double-throw (SPDT) switch can be used as a general-purpose micro switch or tactile obstacle-detector for your robot. The switch body dimension is 20.0 x 6.4 x 10.2 mm (0.79" x 0.25" x 0.40"), and the 15.6mm (0.61") lever arm has a semicircular bump at the tip that simulates a roller. This three-pin switch can also be used as a two-pin single-pole, single-throw (SPST) switch that is open or closed by default, depending on which two pins are used.
 |
